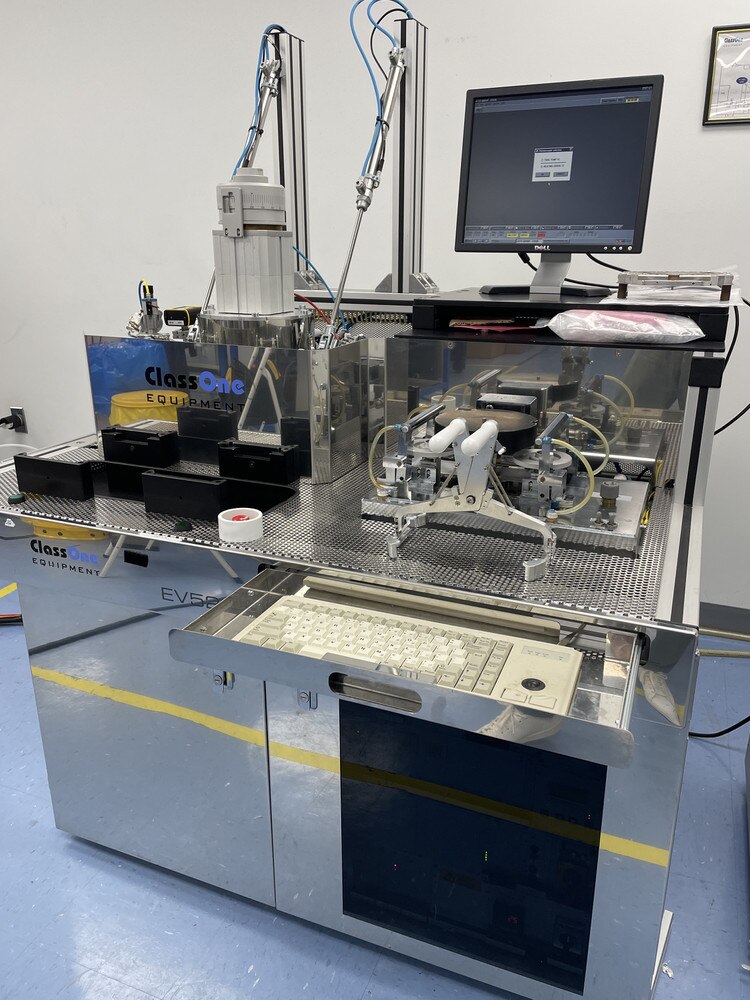

EVG 520 Wafer Bonder
OEM Part #:
520 Wafer Bonder
OEM Name:
EVG
ID #:
4914
Product Details:
EVG 520 WAFER BONDER consisting of:
- Model: EVG 520
- Manual wafer load substrate bonder
- Capable of fusion compression bonding
- Capable of thermal compression bonding
- Capable of anodic bonding
- Ideal for R&D and pilot production applications

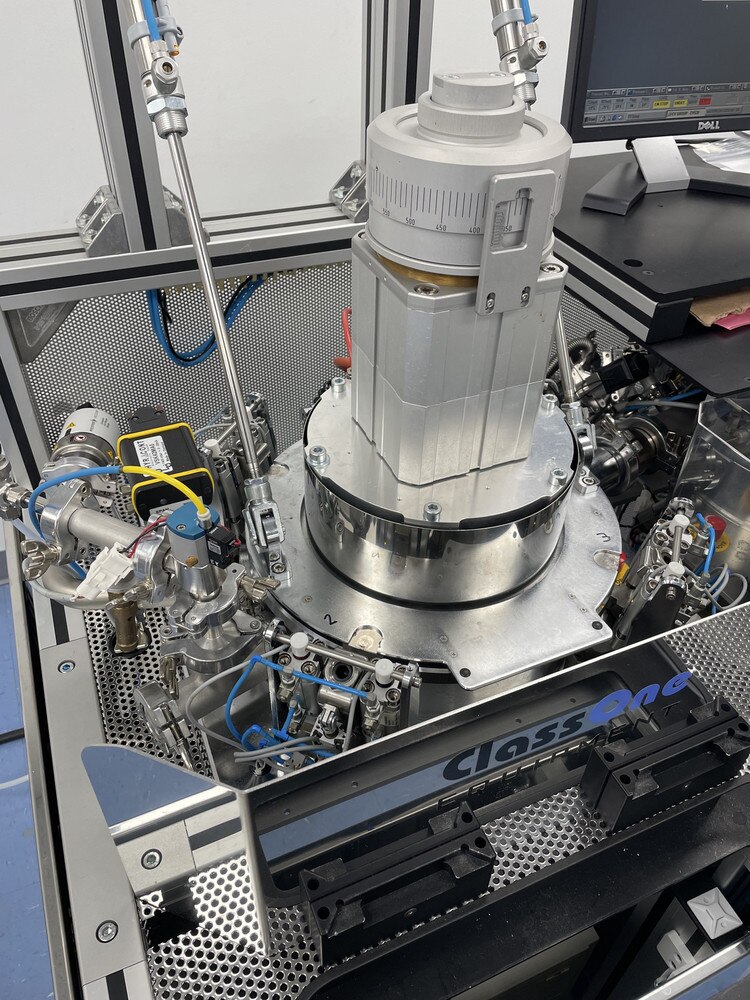

- High-vacuum capable bond chamber
- Auto opening of bond tool cover
- Windows based control software and operation interface
- Wafer size: up to 150mm capable
- Vacuum chuck: 6"/150mm diameter chuck
- Max Bond Force: 7 kN
- Top side heater: 550°C max. in 1°C steps
- Bottom side heater: 550°C max. in 1°C steps
- Thermoflex 1400 Chiller (or equivalent)
- Temperature uniformity: ± 1,5 %
- Turbo pump and controller
- Roughing pump
- Load/unload tool
- System computer, monitor, and keyboard
- Operations Manual for EVG 520 Bonder
- Available for full inspection and demonstration
- Installation, training, service and support available worldwide!
- Model: EVG 520
- Manual wafer load substrate bonder
- Capable of fusion compression bonding
- Capable of thermal compression bonding
- Capable of anodic bonding
- Ideal for R&D and pilot production applications
- High-vacuum capable bond chamber
- Auto opening of bond tool cover
- Windows based control software and operation interface
- Wafer size: up to 150mm capable
- Vacuum chuck: 6"/150mm diameter chuck
- Max Bond Force: 7 kN
- Top side heater: 550°C max. in 1°C steps
- Bottom side heater: 550°C max. in 1°C steps
- Thermoflex 1400 Chiller (or equivalent)
- Temperature uniformity: ± 1,5 %
- Turbo pump and controller
- Roughing pump
- Load/unload tool
- System computer, monitor, and keyboard
- Operations Manual for EVG 520 Bonder
- Available for full inspection and demonstration
- Installation, training, service and support available worldwide!
Condition:
Refurbished
Condition:
Excellent Condition Guaranteed.
Fully Refurbished to Factory Specifications by ClassOne.
6 Month Warranty and Full Specifications Guarantee.
30 Day Right of Return.
As-Is / Where-Is Pricing is Also Available!
Description:
EVG 520 Wafer Bonder.
