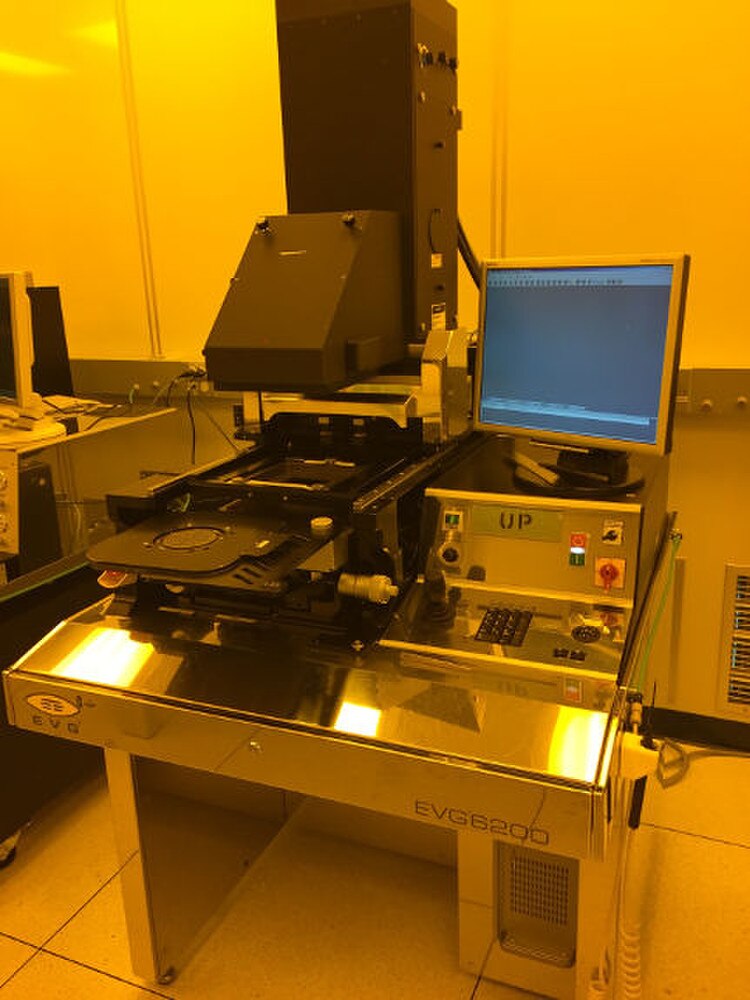

EVG 620 Manual Mask Aligner
OEM Name:
ID #:
Product Details:
- Model: EVG 620
- Manual Mask Aligner
- Topside Alignment (TSA)
- Manual Alignment
- Up to 6"/150mm Wafer Capable (with proper chuck)
- Objectives (Qty 2)
- Vacuum Chuck: request at time of order
- Maskholder: request at time of order
- Mask Load Frame: request at time of order
- Can be Operated in Proximity, Soft Contact, Hard Contact or Vacuum Contact Exposure Modes
- Tooling Exchanges are Quick, Simple and can be Performed Within Minutes

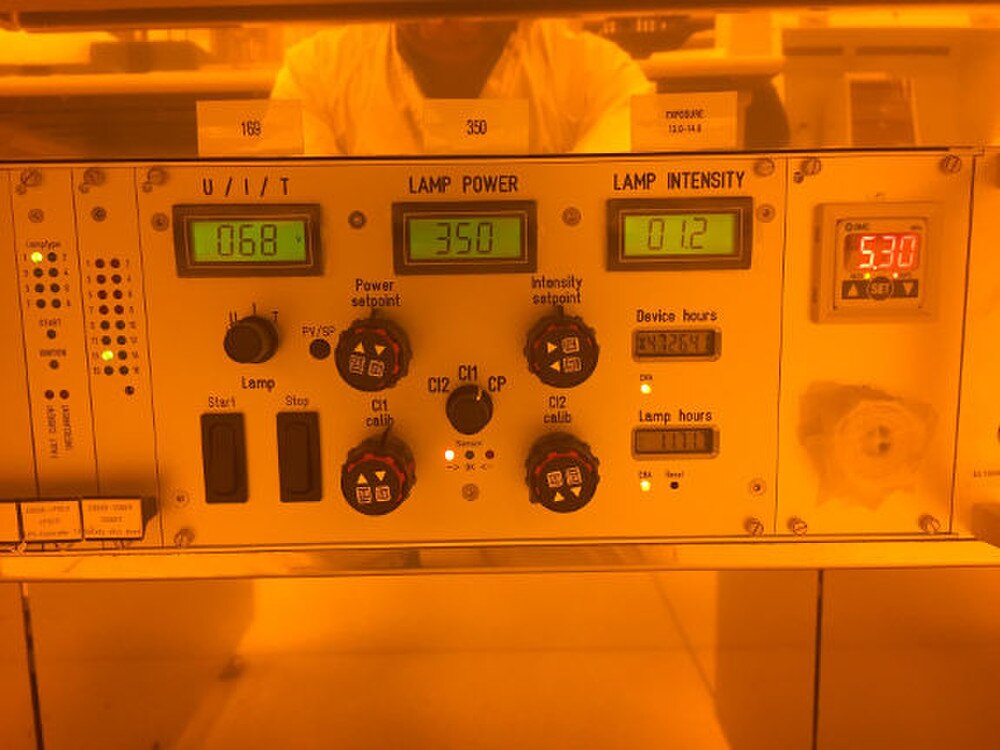

- Lamphouse: 500W Lamphouse
- Exposure Optics: Type C, 350nm - 450nm, Broadband
- Microsoft Windows based User Interface
- System PC, Keyboard, Cables
- Operations Manual for EVG 620
- Manufactured in 2011
- Sold with 6 Month Warranty!
CLASSONE'S MASK ALIGNER REFURBISHMENT PROCESS consists of:
- Ellipsoidal Mirror Replaced with New
- UV Lamp Replaced with New
- Cold Light Mirror Inspected & Replaced as Needed
- Front Turning Mirror Inspected & Replaced as Needed
- Front Lens Inspected & Replaced as Needed
- Lamp Power Supply Tested & Repaired or Replaced as Needed
- Exposure Optics Tested
- Microscope Assembly Inspected and Adjusted as Needed
- Full Optical Alignment of Microscope Performed as Needed
- Machine is Fully Tested to Verify Compliance to Original Specifications
- WEC Head Rebuilt as Needed
- Pneumatic Regulators Inspected & Replaced as Needed
- Machine Covers are Repainted or Replaced as Needed
INSTALLATION AND SUPPORT WORLDWIDE OF EVG MASK ALIGNERS:
- ClassOne Supports all its Used and Refurbished EVG Mask Aligners with Spare Parts and Service Worldwide
- Installation & Training Available Worldwide
- Learn more: http://www.classoneequipment.com/content/mask-aligners
Condition:
Condition:
Fully Refurbished to Factory Specifications by ClassOne.
6 Month Warranty and Full Specifications Guarantee.
30 Day Right of Return.
