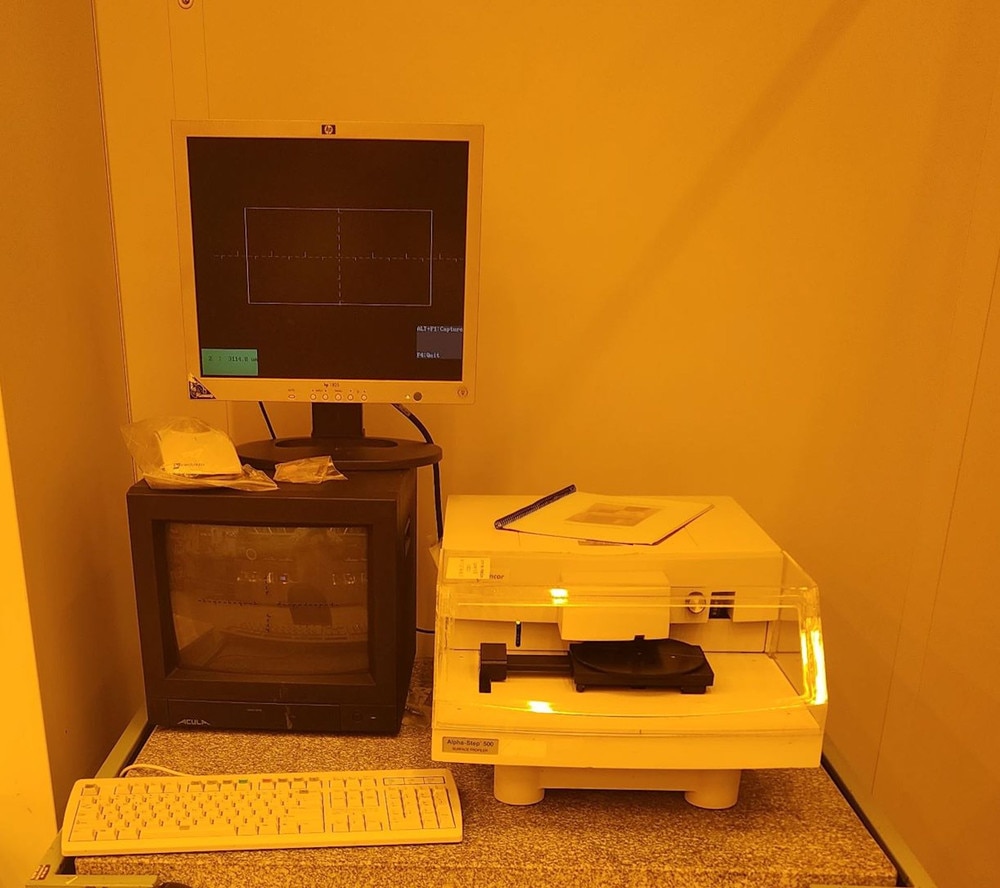

KLA-Tencor Alpha-Step 500 Profilometer
OEM Part #:
Alpha-Step 500 Profilometer
OEM Name:
KLA-Tencor
ID #:
5233
Product Details:
KLA-TENCOR ALPHA-STEP 500 PROFILER consisting of:
- Alpha-Step 500 Mainframe - Up to 6"/150mm Wafer Capable - Measurement Resolution to 1 Angstrom - Repeatability: 10Å (1s) or 0.1% - Computer Controlled Scanning and Data Collection - Comprehensive Data Analysis Software - Intuitive User Interface - Application-Specific Recipes easily programmed - Zoom Optics with Magnification up to 210x - Multi-Scan average mode scans up to 10 times and then averages the scan before print out - Powerful Data Analysis w/ up to 30 standard surface parameters selections - Accurate Surface Characteristic Measurement - 2D Step Height Metrology Profiling - Enables R&D and QA process control with step height metrology below 50nm to 300µm - Delivered with New Stylus (part of refurbishment process) - Operations Manual and Documentation - Available for Full Inspection and Demonstration! - 6 Months Warranty on Parts and Labor (Stylus is not covered under warranty)
- Alpha-Step 500 Mainframe - Up to 6"/150mm Wafer Capable - Measurement Resolution to 1 Angstrom - Repeatability: 10Å (1s) or 0.1% - Computer Controlled Scanning and Data Collection - Comprehensive Data Analysis Software - Intuitive User Interface - Application-Specific Recipes easily programmed - Zoom Optics with Magnification up to 210x - Multi-Scan average mode scans up to 10 times and then averages the scan before print out - Powerful Data Analysis w/ up to 30 standard surface parameters selections - Accurate Surface Characteristic Measurement - 2D Step Height Metrology Profiling - Enables R&D and QA process control with step height metrology below 50nm to 300µm - Delivered with New Stylus (part of refurbishment process) - Operations Manual and Documentation - Available for Full Inspection and Demonstration! - 6 Months Warranty on Parts and Labor (Stylus is not covered under warranty)
Condition:
Excellent Condition Guaranteed.
6 Month Warranty and Full Specifications Guarantee.
30 Day Right of Return.
As-Is / Where-Is Pricing is also Available.
6 Month Warranty and Full Specifications Guarantee.
30 Day Right of Return.
As-Is / Where-Is Pricing is also Available.
Description:
KLA-Tencor Alpha-Step 500 Profiler.
