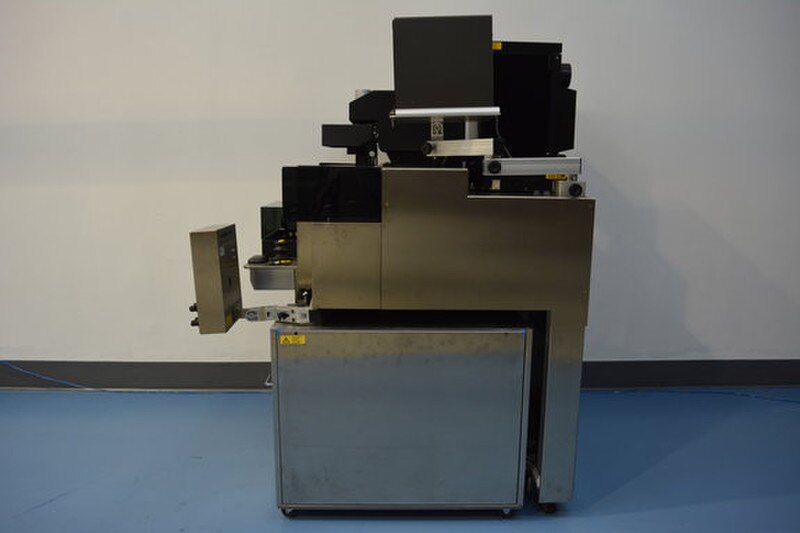

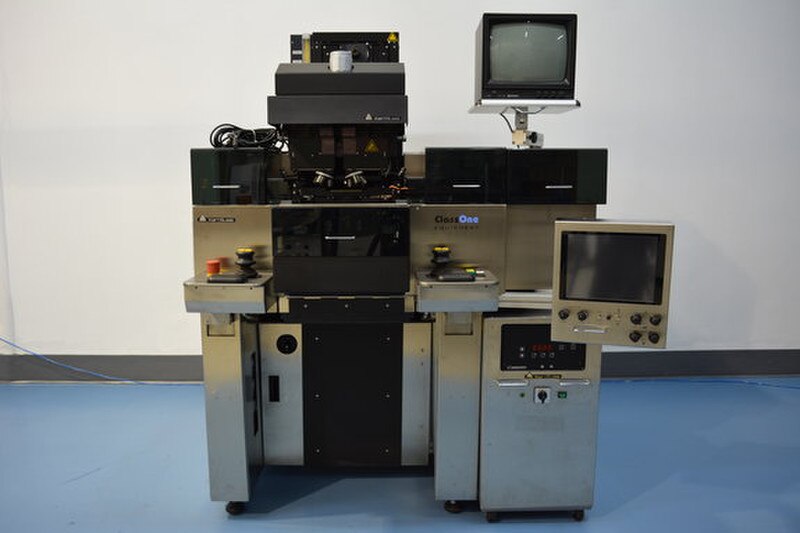

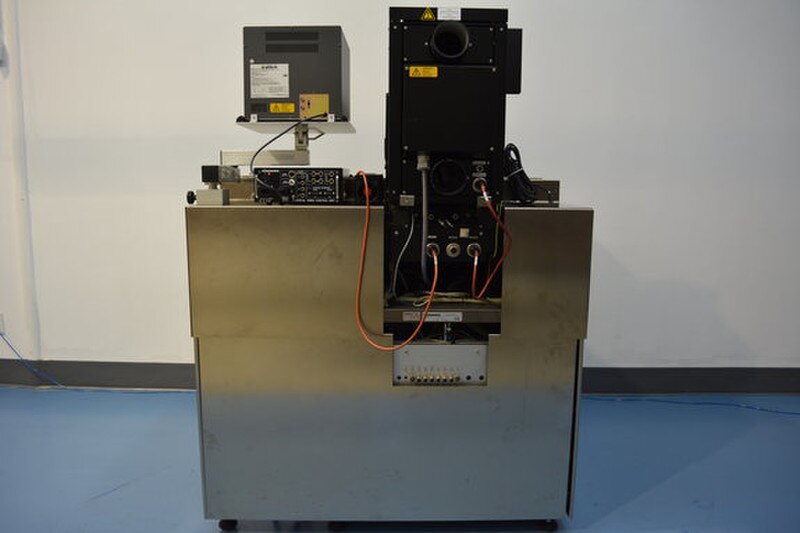

Karl Suss MA150CC Mask Aligner
OEM Part #:
MA150CC Mask Aligner
OEM Name:
Suss
ID #:
4597
Product Details:
KARL SUSS MA150CC MASK ALIGNER consisting of:
- Model: MA150CC
- Automatic Topside & Backside Alignment
- Suss AL3000 Automatic Alignment System
- Cassette to cassette operation
- Can be used in either Automatic or Manual Mode
- Prealigner
- Up to 6"/150mm wafers capable
- 1000 Watt Lamphouse
- UV400 Optics (for 365nm and 405nm exposure)
- Suss CIC1000 Lamp Power Supply
- Suss DVM6 Microscope
- Olympus 5x, 10x, 20x objectives, Qty 2 each
- Chuck
- Maskholder
- Capable of Hard, Soft, and Vacuum Contact Exposure Modes
- Flat Panel Touchscreen
- System Monitor
- System Computer
- Brand New lamp included
- Operations and Service Manual for Suss MA150CC
- Refurbished to Excellent Condition
- System Power: 230V, 50/60Hz
- Model: MA150CC
- Automatic Topside & Backside Alignment
- Suss AL3000 Automatic Alignment System
- Cassette to cassette operation
- Can be used in either Automatic or Manual Mode
- Prealigner
- Up to 6"/150mm wafers capable
- 1000 Watt Lamphouse
- UV400 Optics (for 365nm and 405nm exposure)
- Suss CIC1000 Lamp Power Supply
- Suss DVM6 Microscope
- Olympus 5x, 10x, 20x objectives, Qty 2 each
- Chuck
- Maskholder
- Capable of Hard, Soft, and Vacuum Contact Exposure Modes
- Flat Panel Touchscreen
- System Monitor
- System Computer
- Brand New lamp included
- Operations and Service Manual for Suss MA150CC
- Refurbished to Excellent Condition
- System Power: 230V, 50/60Hz
Condition:
Refurbished
Condition:
Fully Reconditioned to Excellent Condition by ClassOne Equipment.
6 Month Warranty.
30 Day Right of Return.
Available for Full Inspection and Demo at our Facility.
6 Month Warranty.
30 Day Right of Return.
Available for Full Inspection and Demo at our Facility.
Description:
Karl Suss MA150CC Mask Aligner.
