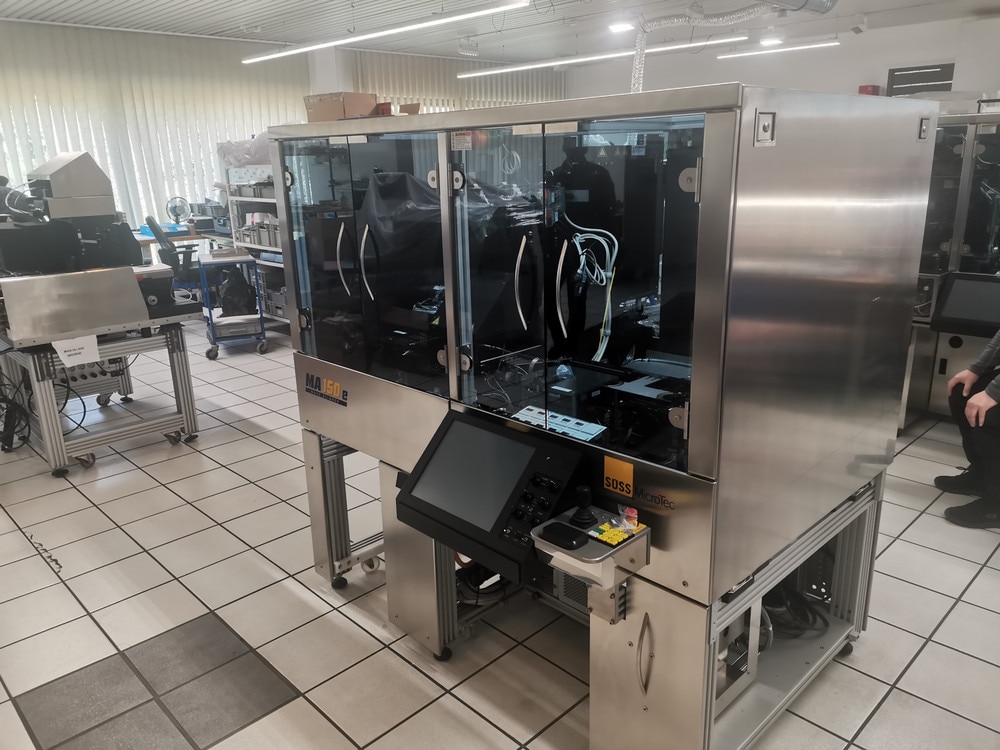

Karl Suss MA150e Mask Aligner
OEM Part #:
OEM Name:
ID #:
Product Details:
Karl Suss MA150 Mask Aligner consisting of:

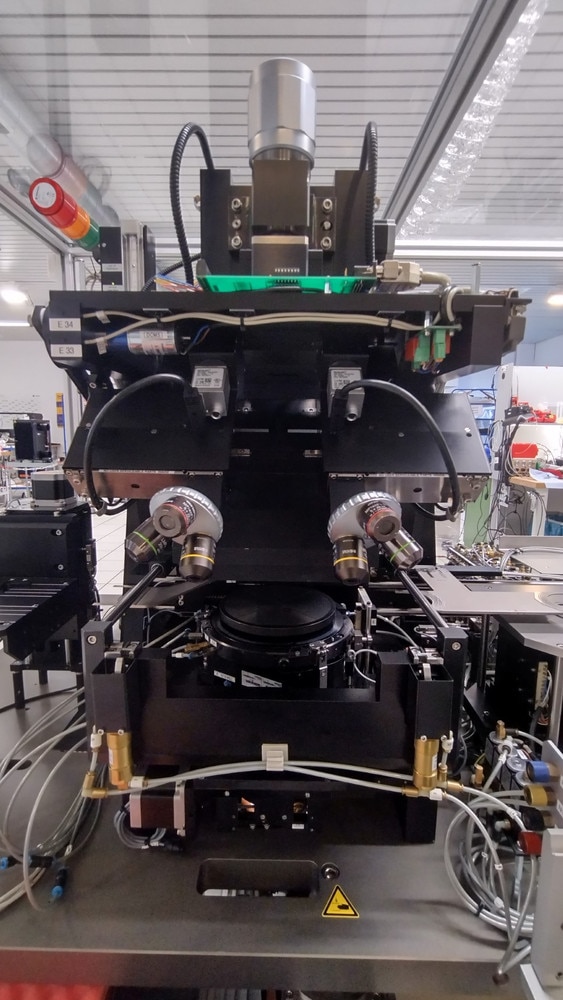

- Model: MA-150e - Topside Alignment (TSA) - Automatic Mask Aligner - Cassette to cassette operation - Can be used in either Automatic or Manual Mode - Windows Operating Software - Cognex Pattern Recognition Software for automatic alignment of the mask to substrate patterns. - Capable of aligning patterns of nearly any shape or design with alignment accuracies of less than 1.0µm - Auto Align option installed - Lamphouse: 1000 Watt Lamphouse - Exposure Optics: UV400 Optics (365nm/405nm exposure) - Power Supply: CIC1200 - Microscope: DVM6 Microscope - Single Objective: Configured to fit customer requirement (5x, 10x, or 20x) - Vacuum Chuck: Configured to fit customer requirements - Maskholder: Configured to fit customer requirements - Capable of Hard, Soft, Proximity, and Vacuum Contact Exposure Modes (with appropriate tooling) - Brand New Ushio 1000W Lamp included - Operations Manual for Suss MA150 - System Power: 208/230V - Refurbished by Suss Reman to excellent condition
Condition:
Condition:
Excellent Condition Guaranteed.
Fully Reconditioned to Factory Specifications.
6 Month Warranty and Specifications Guarantee
30 Day Right of Return.
Description:
Karl Suss MA150e Mask Aligner
