Other | Single-Phase Brushless Motor
OEM Part #:
N/A
OEM Name:
Other
ID #:
O1704
Condition:
New
Description:

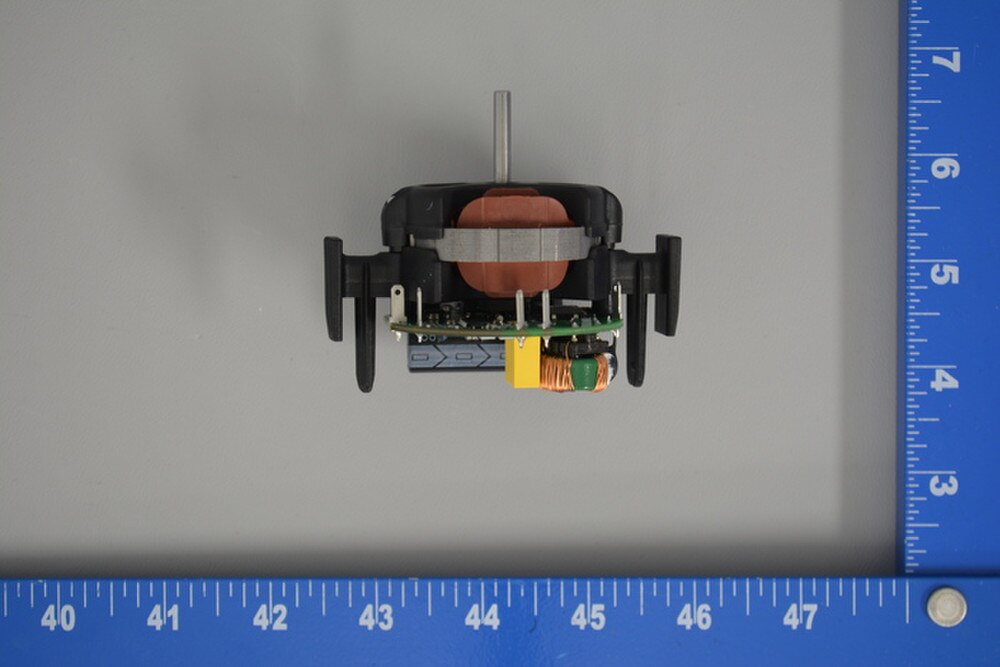

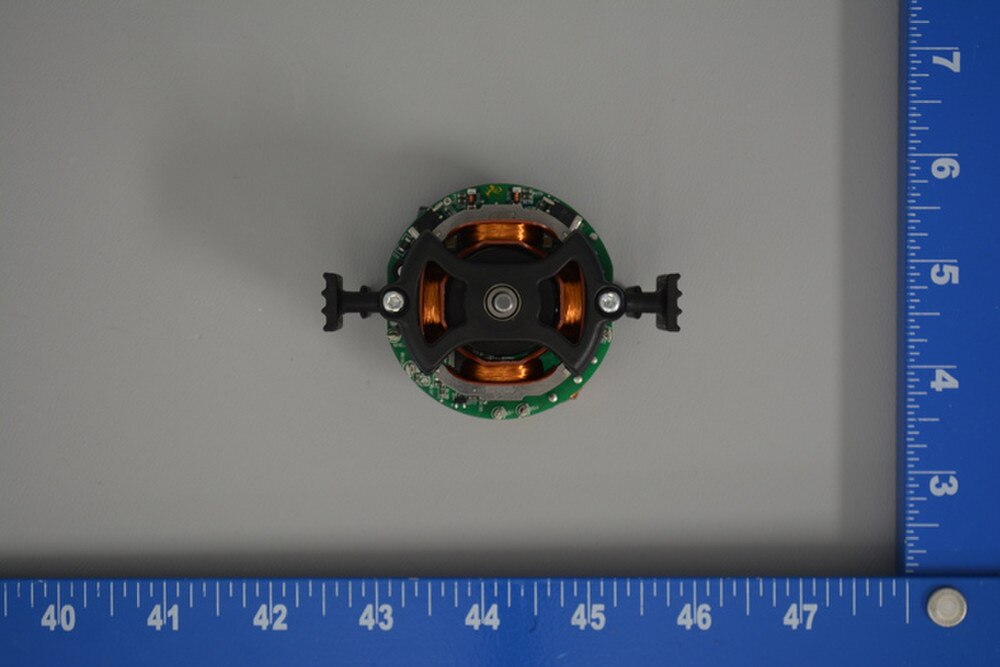

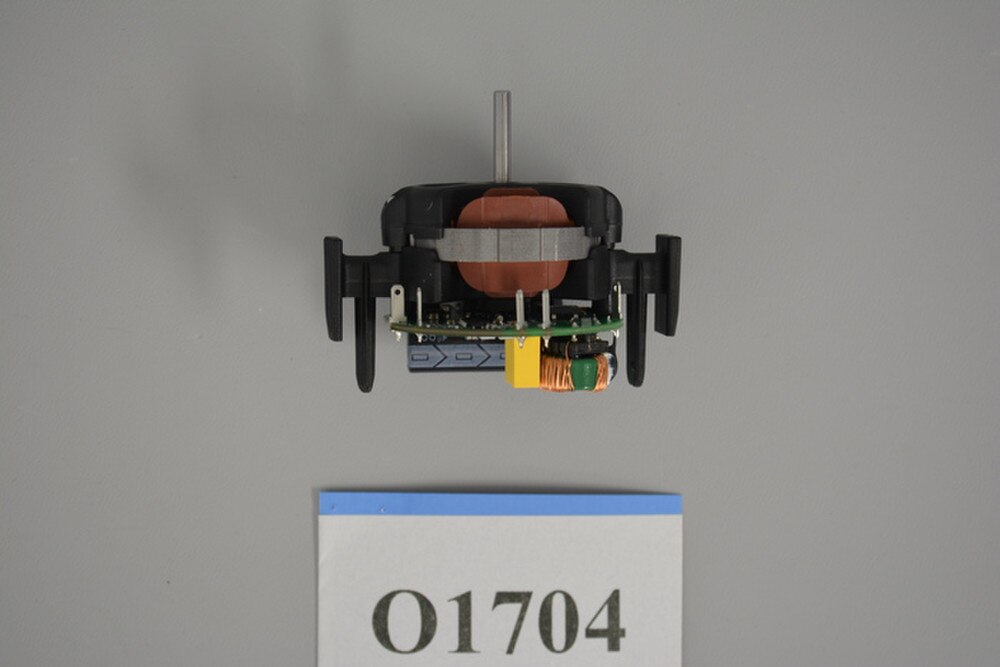

- Single-phase brushless motor.
- Internal rotor
- 4 poles
- Diameter 45mm
- Stator pack height H 7mm

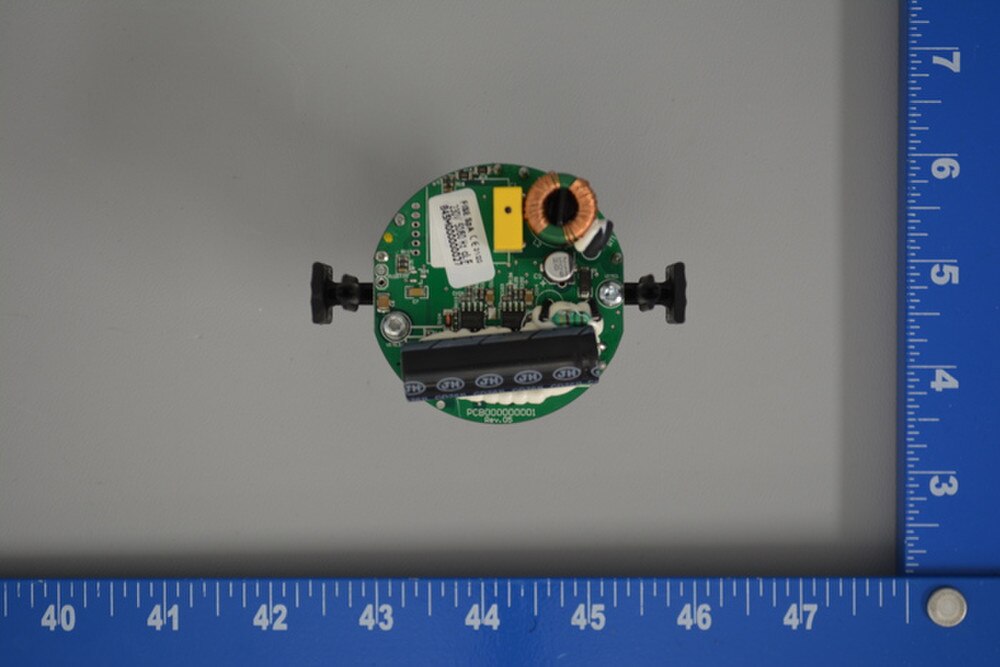

- Supplied with electronics
- Shaft: 4mm diamater, 20mm length
- 230Vac
- Max. absorption 155W
- 3 speeds 16000/18000/20000 rpm
- Current protection and locked rotor protection
- EMC compliant 55014
- Built according to European standards EN 60335/1 as safety reference.
- Internal rotor
- 4 poles
- Diameter 45mm
- Stator pack height H 7mm
- Supplied with electronics
- Shaft: 4mm diamater, 20mm length
- 230Vac
- Max. absorption 155W
- 3 speeds 16000/18000/20000 rpm
- Current protection and locked rotor protection
- EMC compliant 55014
- Built according to European standards EN 60335/1 as safety reference.
