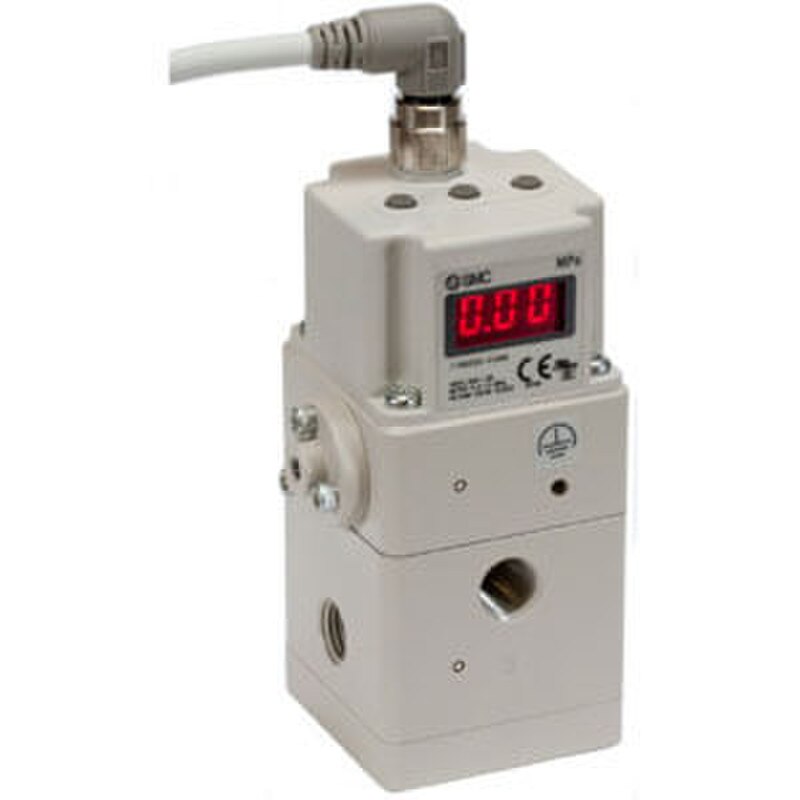

SMC | ITVH Series, 3.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator
OEM Part #:
ITVH Series
OEM Name:
SMC
ID #:
SC0435
Condition:
New
Description:
- Electro-Pneumatic Regulator - Maximum supply pressure: 435 psi [3.0 MPa] - Set pressure range: 29 to 290 psi [0.2 to 2.0 MPa] - Stepless control of air pressure up to 290 psi [2.0 MPa] - Stability: ±1% F.S. or less - Power consumption: 3 W or less - Maximum flow rate: 106 scfm [3000 L/min (ANR)] - Wetted parts: Fluorine grease - Contact us for your SMC Product needs.
Additional Questions:
Contact: parts@classoneequipment.com
