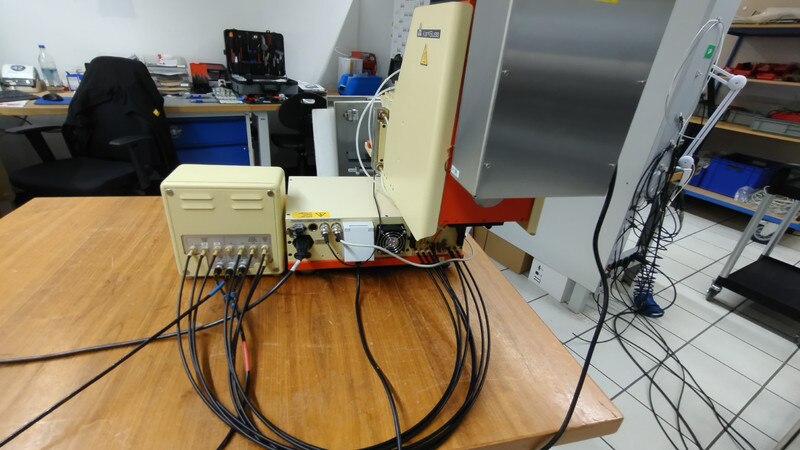

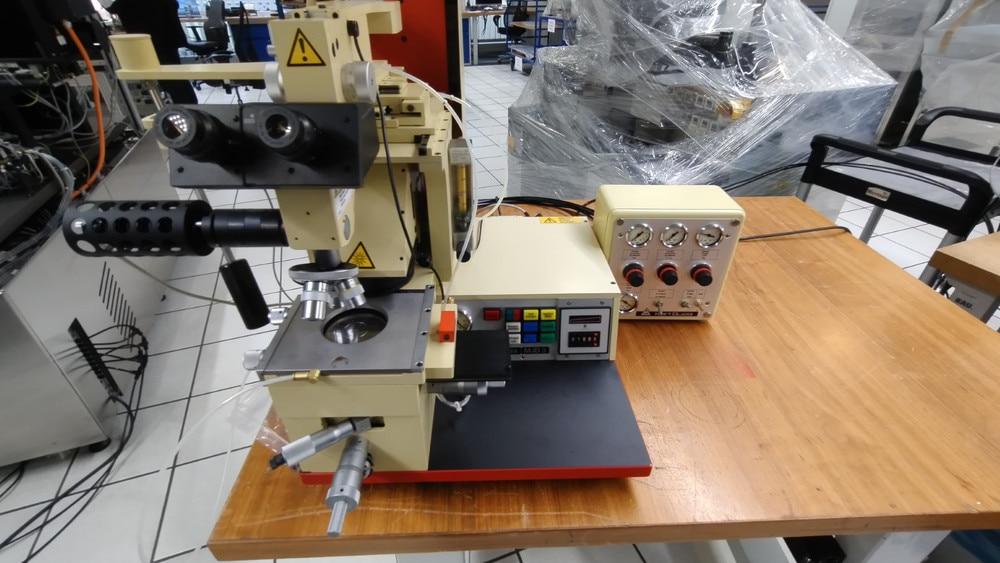

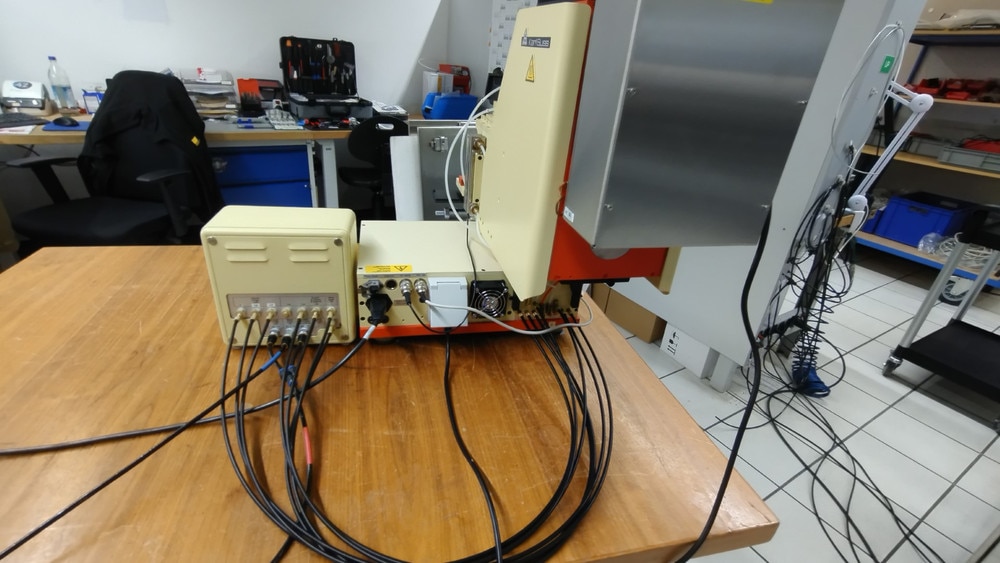

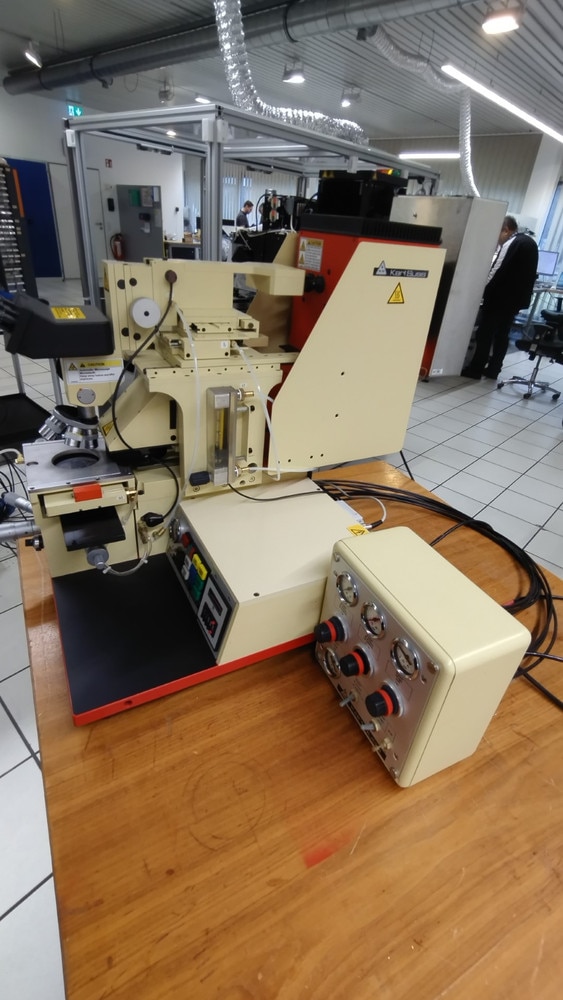

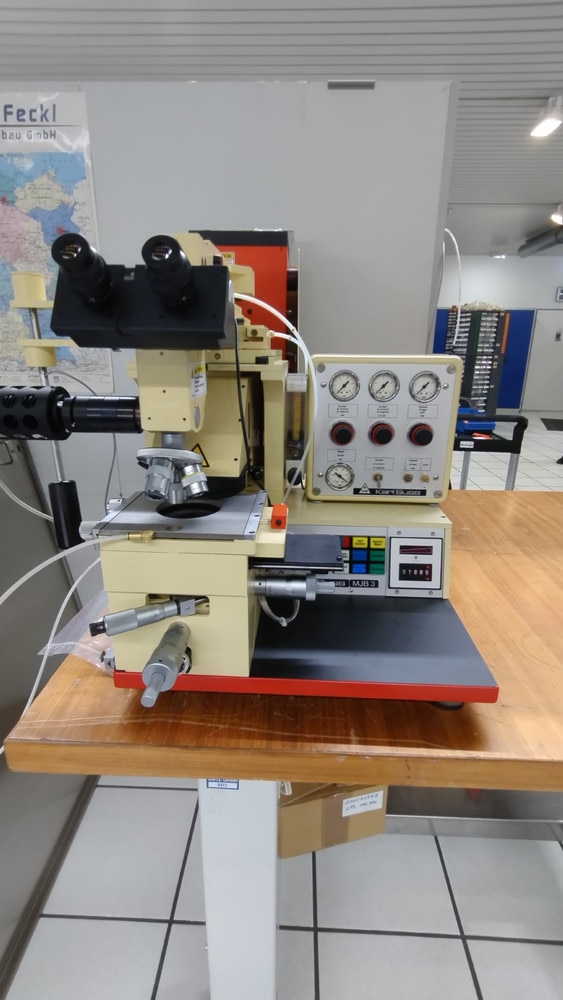

Suss 350W MJB3 Mask Aligner
OEM Part #:
OEM Name:
ID #:
Product Details:
SUSS MICROTEC MJB3 MASK ALIGNER consisting of:
- Model: MJB3 Main System - Manufacturer: Suss MicroTec / Karl Suss Configured for Top Side Alignment - Max Wafer Size: 3" Diameter - CIC 500 Power Supply - 350 Watt Lamphouse - UV400 Exposure Optics (for 365nm and 405nm exposure) - Suss M400 Microscope - Eyepieces: 10x - Objectives: 3.2x,10x and 20x - Exposure Mode: Vacuum Contact, Hard & Soft - Light Source for Microscope - Exposure Resolution: 0.8 Microns (under optimum conditions) - Alignment Resolution: 0.25um (operator dependant) - 1 Maskholder included (for 4"x4" masks) - 1 Wafer Chuck included (specify size, many in stock) - Brand New 350W Bulb, qty. 1 included - Vintage: Remanufactured by Suss Reman in 2024 - Refurbished to Meet Original Suss MJB3 Specifications! - Operations Manual for Suss MJB3 Mask Aligner
CLASSONE'S MASK ALIGNER REFURBISHMENT PROCESS consists of:
1) Main System Body: - Ellipsoidal Mirror Replaced with New - UV Bulb Replaced with New - Cold Light Mirror Inspected & Replaced as Needed - Front Turning Mirror Inspected & Replaced as Needed - Front Lens Inspected & Replaced as Needed - Shutter Cylinders Replaced with New - Mirror House Cylinder Replaced with New - Lamp Power Supply Tested & Repaired or Replaced as Needed - Exposure Optics Tested - Microscope Illumination Bulbs Replaced with New - Microscope Assembly Inspected and Adjusted as Needed - Full Optical Alignment of Microscope Performed as Needed - Machine is Fully Tested to Verify Compliance to Original Specifications - WEC Head Rebuilt - Pneumatic Regulators Inspected & Replaced as Needed - Machine Covers are Repainted or Replaced as Needed
2) Isolation Table:
- Isolation Table Air Bags Inspected & Replaced as Needed - Pneumatic Regulators Inspected & Replaced as Needed - Air lines Inspected & Replaced as Needed - Wheels Inspected & Replaced as Needed - Leveling Feet Inspected & Replaced as Needed
3) If Applicable:
- Transport Slide Rebuilt - Pre-Aligner Assembly Rebuilt - Wafer Alignment Stage Rebuilt - Cassette Elevator Rebuilt
INSTALLATION AND SUPPORT WORLDWIDE OF SUSS MASK ALIGNERS:
- ClassOne Supports all its Used and Refurbished Suss Mask Aligners with Spare Parts and Service Worldwide - Installation & Training Available Worldwide - Learn more: Mask Aligners and Bonders
Condition:
Condition:
Excellent Condition Guaranteed.
Fully Refurbished to Factory Specifications by ClassOne.
6 Month Warranty and Full Specifications Guarantee.
30 Day Right of Return.
