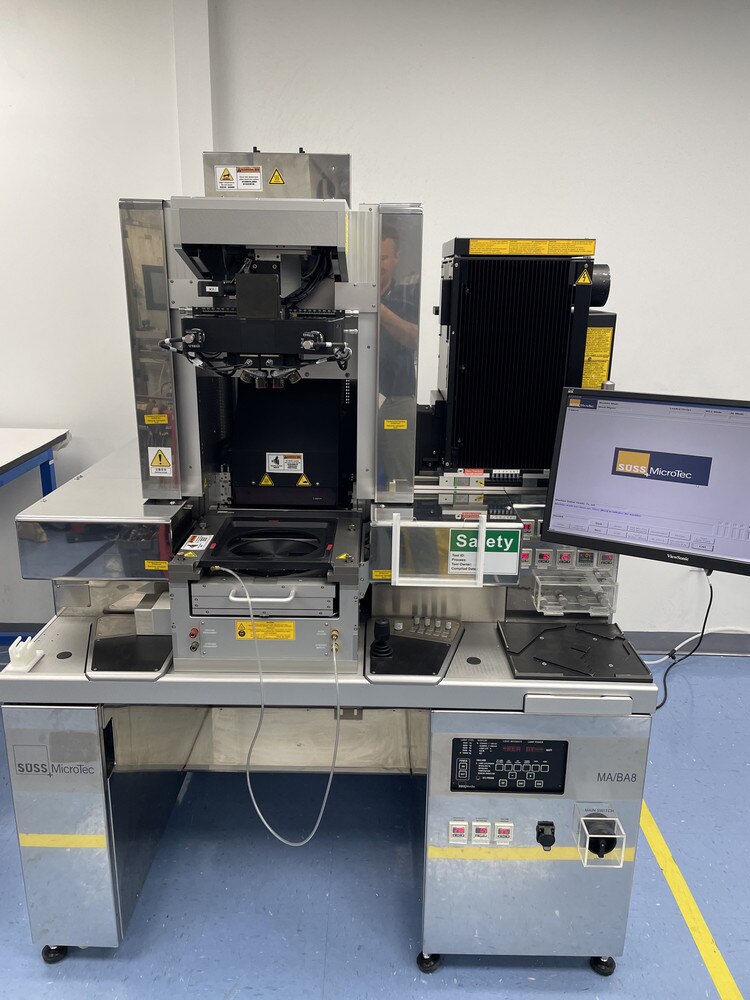

SUSS MICROTEC MA8 / BA8 MASK ALIGNER (Gen 3)
OEM Part #:
OEM Name:
ID #:
Product Details:
SUSS MICROTEC MA8 / BA8 MASK ALIGNER (Gen 3) consisting of:

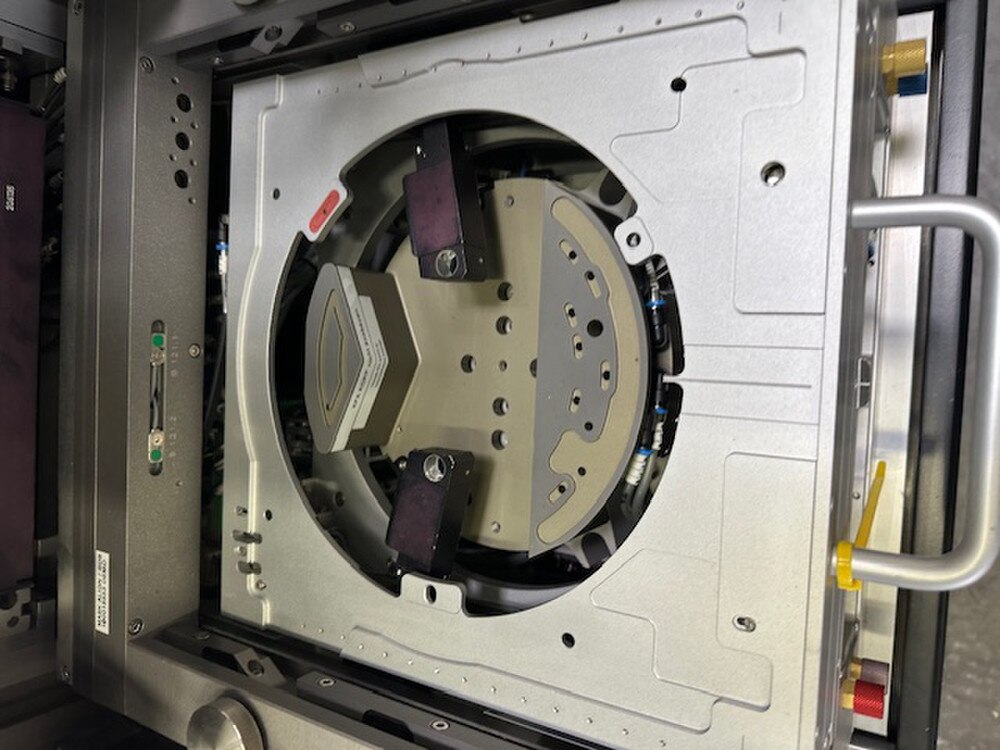

- Manufacture: Suss MicroTec - Model: MA8/BA8 - PC, Monitor, Keyboard, Mouse - 1000W Lamphouse - CIC1200 Power Supply - Isolation Table - Chuck and Maskholder for 8″ / 200mm Wafers - Topside & Backside Alignment
CLASSONE'S MASK ALIGNER REFURBISHMENT PROCESS consists of:
1) Main System Body:
- Ellipsoidal Mirror Replaced with New - UV Bulb Replaced with New - Cold Light Mirror Inspected & Replaced as Needed - Front Turning Mirror Inspected & Replaced as Needed - Front Lens Inspected & Replaced as Needed - Shutter Cylinders Replaced with New - Mirror House Cylinder Replaced with New - Lamp Power Supply Tested & Repaired or Replaced as Needed - Exposure Optics Tested - Microscope Illumination Bulbs Replaced with New - Microscope Assembly Inspected and Adjusted as Needed - Full Optical Alignment of Microscope Performed as Needed - Machine is Fully Tested to Verify Compliance to Original Specifications - WEC Head Rebuilt - Pneumatic Regulators Inspected & Replaced as Needed - Machine Covers are Repainted or Replaced as Needed
2) Isolation Table: - Isolation Table Air Bags Inspected & Replaced as Needed - Pneumatic Regulators Inspected & Replaced as Needed - Air lines Inspected & Replaced as Needed - Wheels Inspected & Replaced as Needed - Leveling Feet Inspected & Replaced as Needed
3) If Applicable:
- Transport Slide Rebuilt - Pre-Aligner Assembly Rebuilt - Wafer Alignment Stage Rebuilt - Cassette Elevator Rebuilt
Condition:
Condition:
Excellent Condition Guaranteed.
Fully Refurbished to Factory Specifications by ClassOne.
6 Month Warranty and Full Specifications Guarantee.
30 Day Right of Return.
As-Is / Where-Is Pricing is Also Available.
