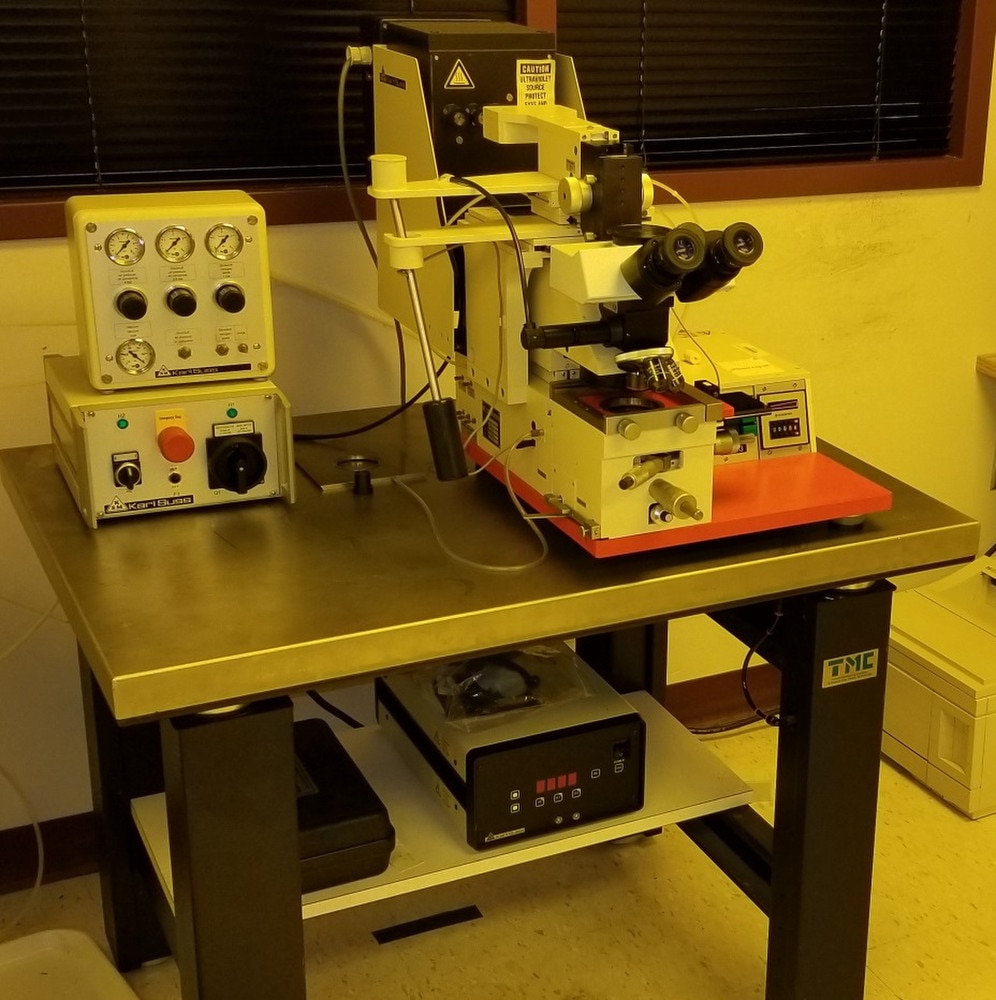

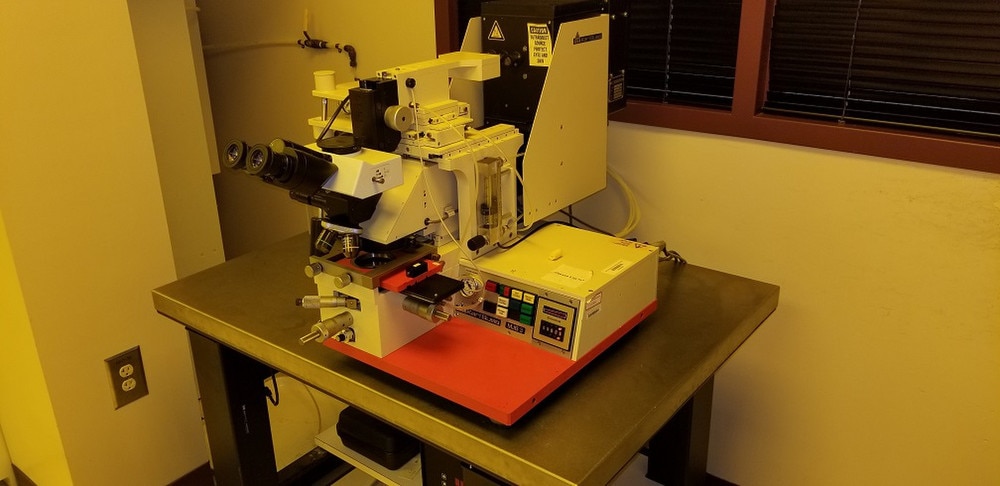

Suss MJB3 350W Mask Aligner

SUSS MJB3 350W MASK ALIGNER consisting of:

- Model: MJB3 350W

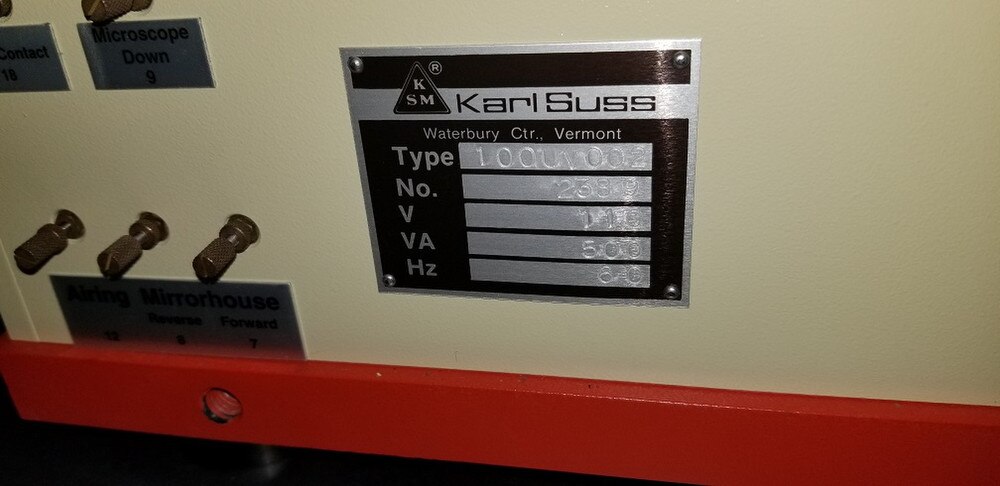

- Manufacturer: Suss MicroTec / Karl Suss
- Configured for Top Side Alignment
- Includes one Chuck (Customer to Choose Size)
- Includes one Maskholder (Customer to Choose Size)
- System is capable of processing up to 3” diameter wafers maximum (with purchase of proper
chuck)
- Microscope Illuminator
- CIC500 Power Supply
- 350W Lamphouse
- UV400 Exposure Optics (for 365nm and 405nm)
- Newer style button controls and timer
- Push Button Keypad
- Normalfield Microscope
- Objectives: 5x, 10x, and 20x
- Set of Eyepieces: 10x
- Capable of Vacuum, Hard, and Soft Contact Modes
- Exposure Resolution: 0.7/0.8 microns (under optimum conditions)
- Alignment Resolution: 0.25um (operator dependent)
- Brand New 350W lamp, Qty 1 included
- Operations Manual and Documentation
- Excellent Condition Guaranteed
- Fully Refurbished to Factory Specifications by ClassOne

CLASSONE’S MASK ALIGNER REFURBISHMENT PROCESS consists of:
- Ellipsoidal Mirror Replaced with New
- UV Lamp Replaced with New
- Cold Light Mirror Inspected & Replaced as Needed
- Front Turning Mirror Inspected & Replaced as Needed
- Front Lens Inspected & Replaced as Needed
- Shutter Cylinders Replaced with New
- Mirror House Cylinder Replaced with New
- Lamp Power Supply Tested & Repaired or Replaced as Needed
- Exposure Optics Tested
- Microscope Illumination Bulbs Replaced with New
- Microscope Assembly Inspected and Adjusted as Needed
- Full Optical Alignment of Microscope Performed as Needed
- Machine is Fully Tested
- WEC Head Rebuilt
- Pneumatic Regulators Inspected & Replaced as Needed
- Machine Covers are Repainted or Replaced as Needed

INSTALLATION AND SUPPORT WORLDWIDE OF SUSS MASK ALIGNERS:

- ClassOne Supports all its Used and Refurbished Suss Mask Aligners with Spare Parts and Service Worldwide
- Installation & Training Available Worldwide
- Learn more: http://www.classoneequipment.com/content/mask-aligners
