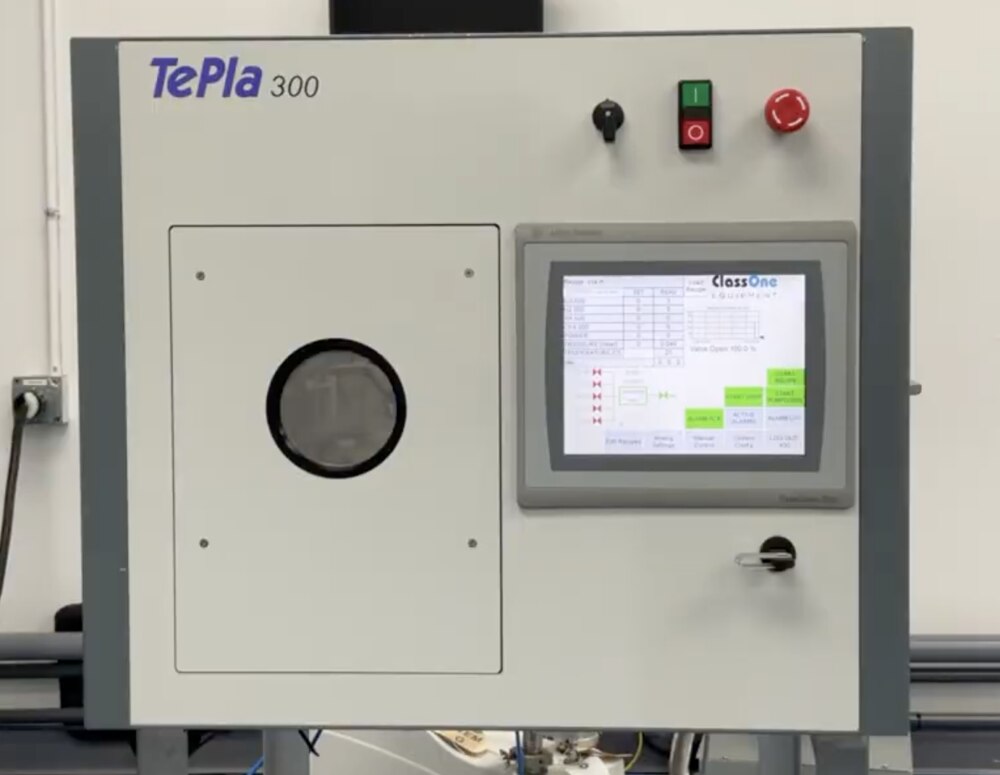

Tepla 300 Plasma Asher
OEM Part #:
300 AL-PC
OEM Name:
Tepla
ID #:
5157
Product Details:
Tepla 300 Plasma Asher consisting of:

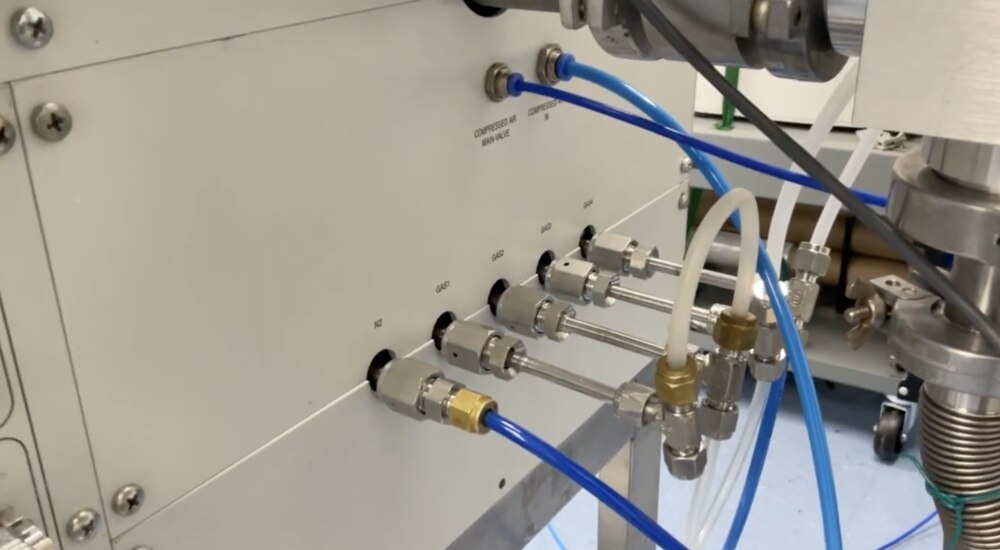

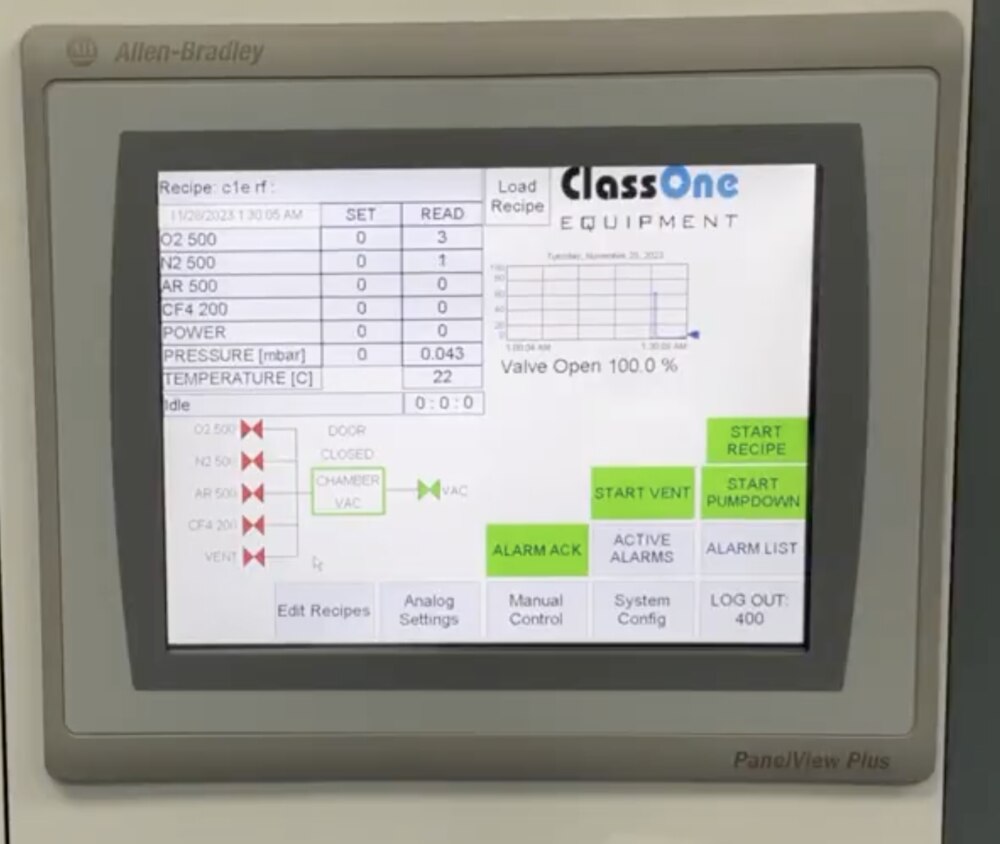

- Model: 300 AL PC Main System - Manual wafer load plasma asher - Designed for Wafer Cleaning and Descum - Plasma Chamber: Quartz - Plasma Chamber Dims: 245mm diameter, 380mm depth - Plasma Generation: 2.45 GHz Max / 1.000 Watt Variable - Gas Lines: N2 Gas Input and 3 Process Gas Inputs - Motor Driven Drawer Unit - Vacuum Pump (Fomblin oil prepped) - PLC Controls - Touchscreen HMI - Operators Manual for Tepla 300.
- Model: 300 AL PC Main System - Manual wafer load plasma asher - Designed for Wafer Cleaning and Descum - Plasma Chamber: Quartz - Plasma Chamber Dims: 245mm diameter, 380mm depth - Plasma Generation: 2.45 GHz Max / 1.000 Watt Variable - Gas Lines: N2 Gas Input and 3 Process Gas Inputs - Motor Driven Drawer Unit - Vacuum Pump (Fomblin oil prepped) - PLC Controls - Touchscreen HMI - Operators Manual for Tepla 300.
Condition:
Refurbished
Condition:
Excellent Condition Guaranteed
Fully Reconditioned to Factory Specifications
6 Month Warranty and Specifications Guarantee
30 Day Right of Return
Fully Reconditioned to Factory Specifications
6 Month Warranty and Specifications Guarantee
30 Day Right of Return
Description:
Tepla 300 Plasma Asher (Photoresist Asher/Stripper)
