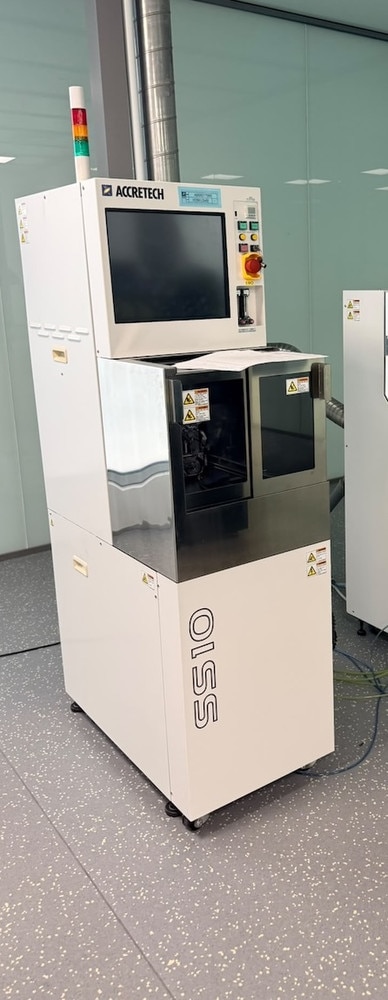

Accretech SS10 Single Spindle Semi-Automatic Dicing System
OEM Part #:
OEM Name:
ID #:
Product Details:
Accretech SS10 Single Spindle Semi-Automatic Dicing System consisting of:

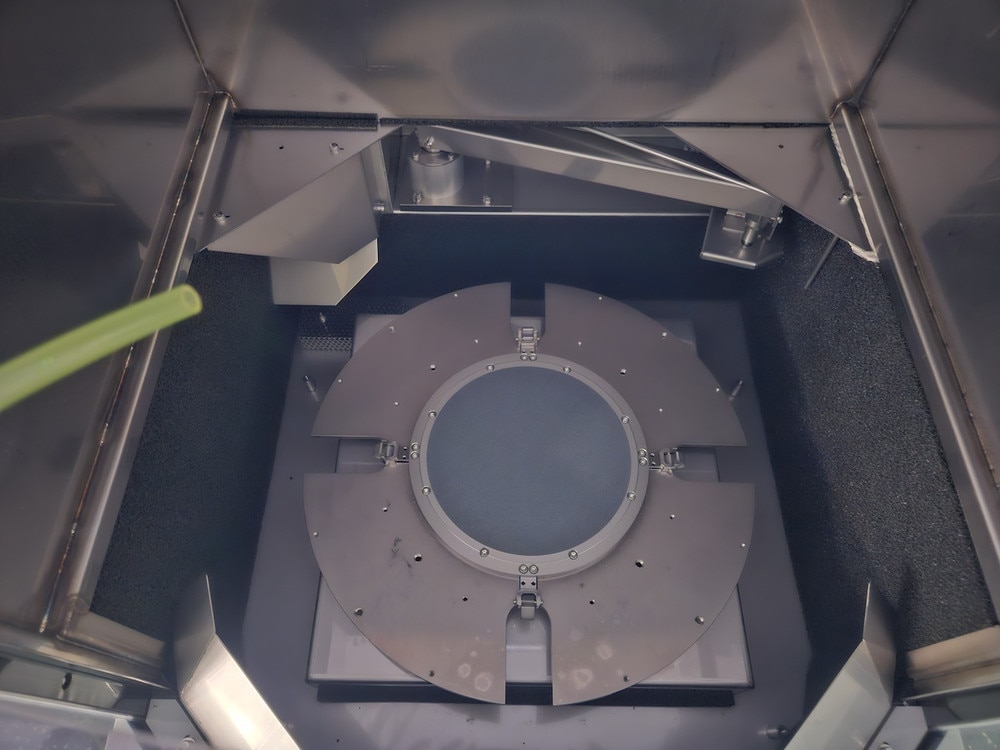

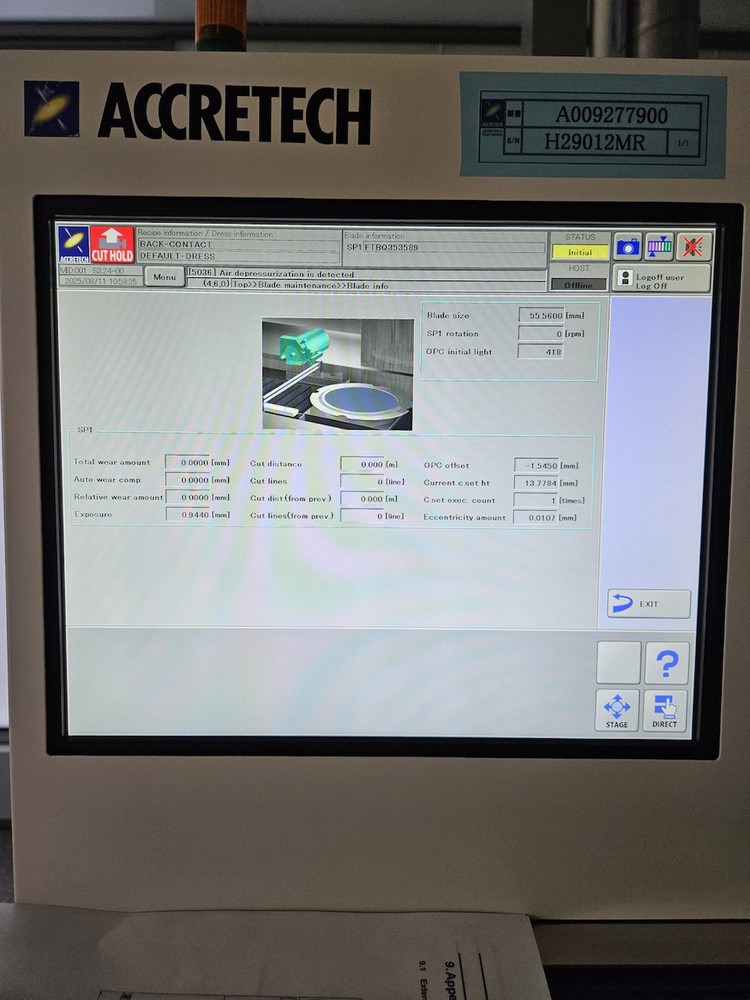

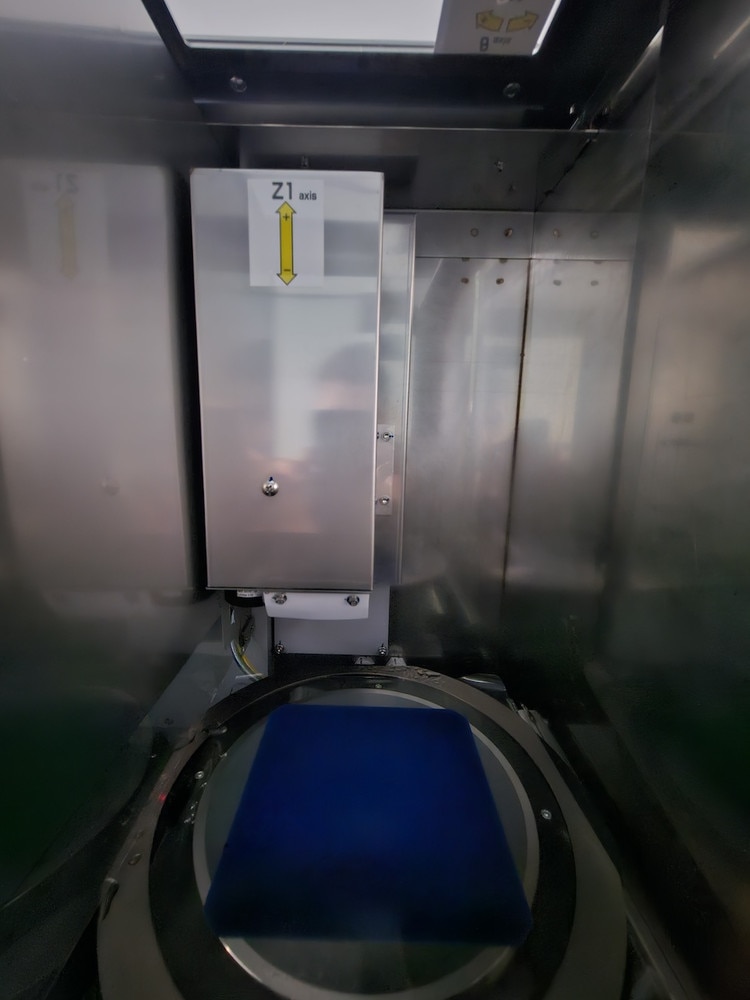

- 6-inch frame or 106mm * 106mm workpiece on circular frame - Larger dimension available with special cutting table and frames - Standard spindle 1,8kW (max. output 2,2kW) - Standard spindle up to 60,000rpm - X-axis max. speed 600 mm/sec - Y-axis max. speed 160 mm/sec - 17" LCD touch panel and new GUI - Easy and simple Kerf check function - Stores over 10.000 recipes - USB port as standard option - Ease-of-maintenance front-side accessibility - Wide maintenance door - Optimized vacuum controller reduces 50% of air consumption - incl. CE certification - Cable Length 5.0m - Optical-type automatic cutter-set (OPC) - Blade Breakage Detector BBD - 6" Porous Cutting Table - 2" Flange for hub-type - Hubless Flange 2" (please provide OD after order) - Flange Cover for 2" Blade - High Magnification Microscope for substrate X4 (1/4" CCD) (FOV: 0.9 x 0.68 mm) - Low Magnification Microscope for substrate X2 (1/4" CCD) (FOV: 3.6 x 2.7 mm) - Standard documents are also included in USB memory instead of paper - Stage dress function - Dress board for 37.5mm - Transformer 380V - Water Curtain
Condition:
Condition:
Description:
Accretech SS10 Single Spindle Semi-Automatic Dicing System.
